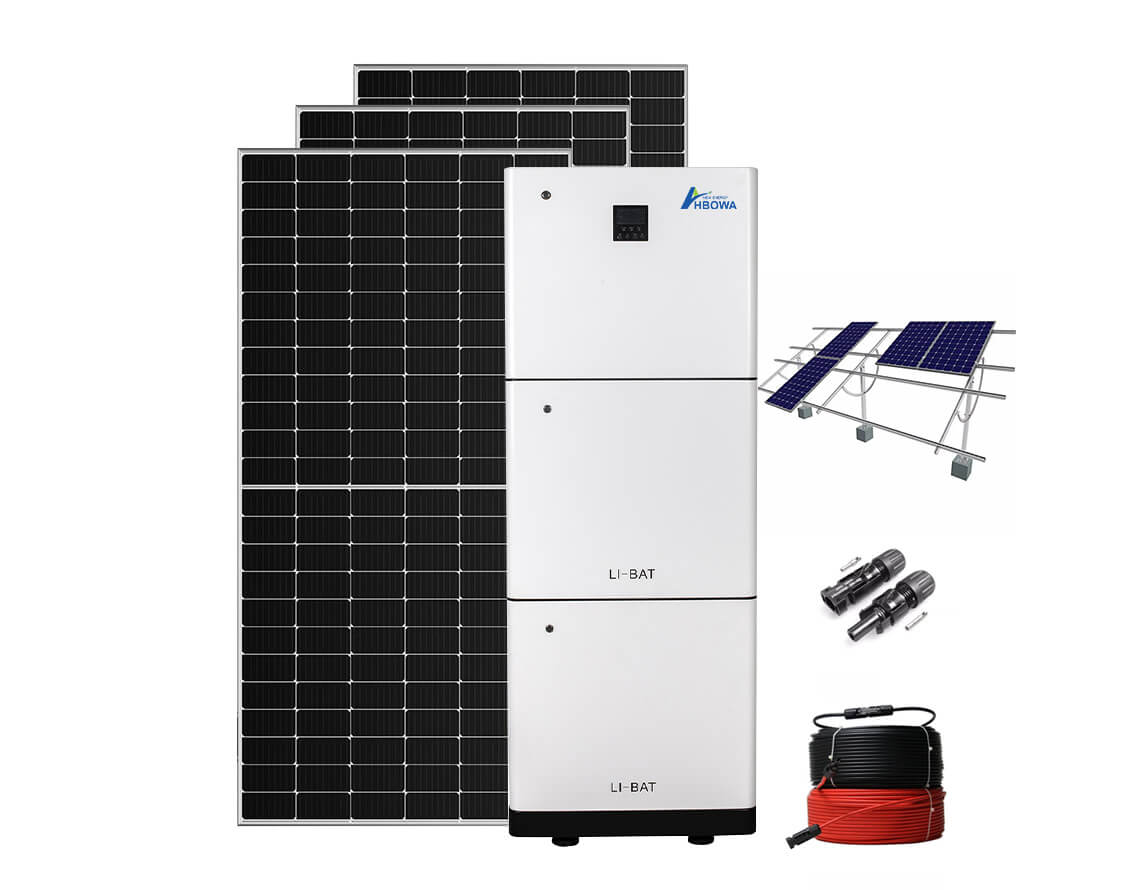

5KW 10KWh All In One Off Grid Solar Kit
Max. Power Output: 5KW
Battery: 10KWh stacked lifepo4 battery
(each layer 5KWh, top layer: 5KW inverter)
Output Voltage: 230VAC ± 5% @50/60Hz
Certificate: CE/TUV/CSA/CEC/UL/ISO
Warranty: 25 Years
Place of origin: China
All In One DatasheetDescription
Composition：
- 10 * 550W solar panels
- 1* stacked lifePO4 battery with a off-grid 5kw inverter on top layer,
- 1* roof mounting system
- 1* DC cables, MC4 connectors
- Other accessories.
Required installation space： at least 30 m²

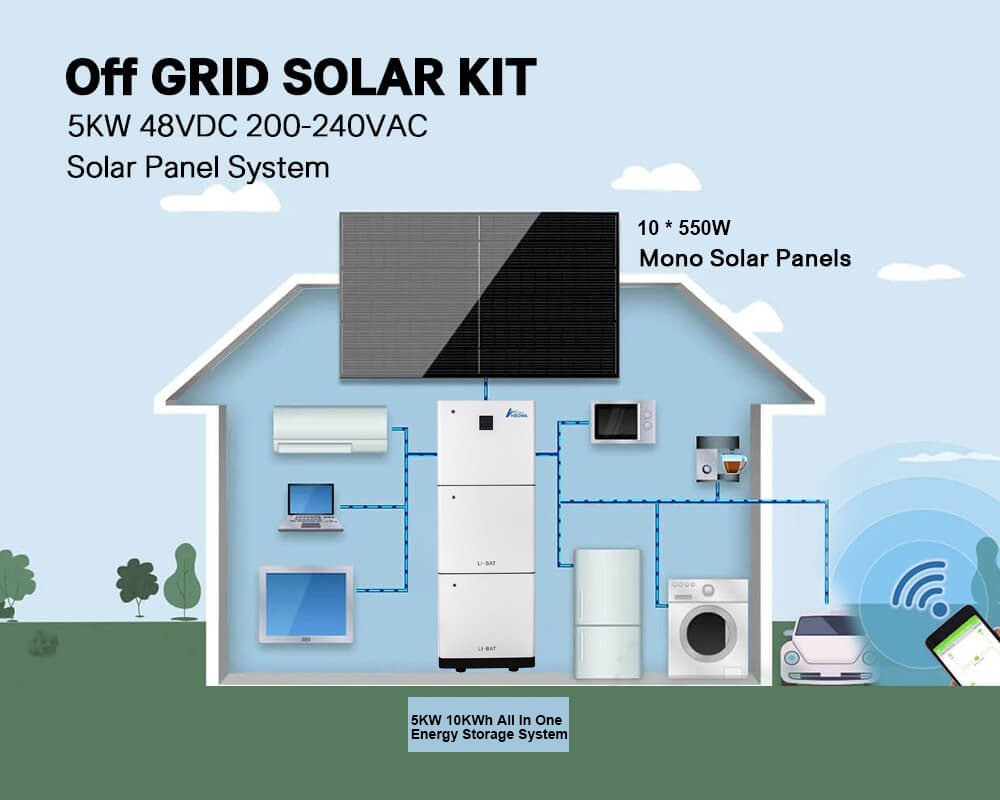

The off-grid solar system will generate about 22kwh(based on 4 hours of effective sunlight per day), and the inverter power of the off-grid system is 5kw. You can connect your home appliances to the system, and make sure their total power does not exceed the rated power of the inverter.

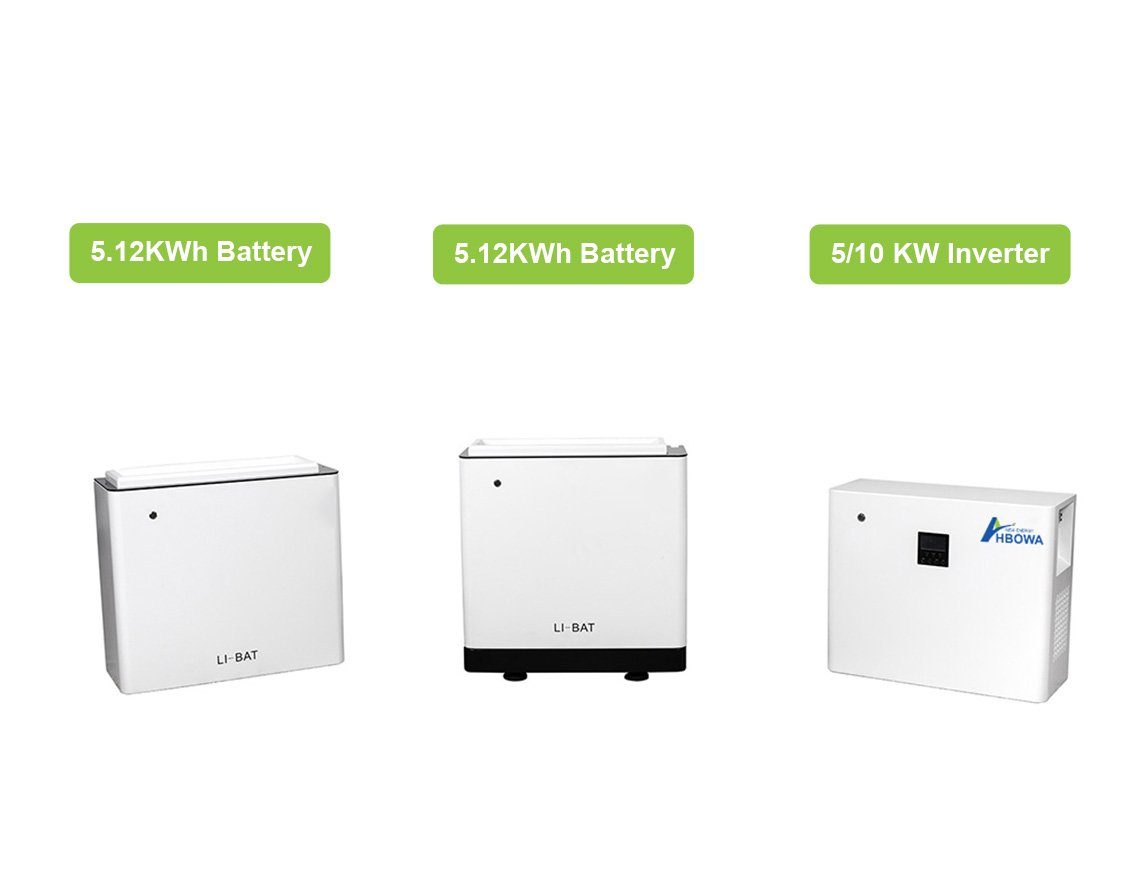

All in one stacked lifePO4 battery and inverter:

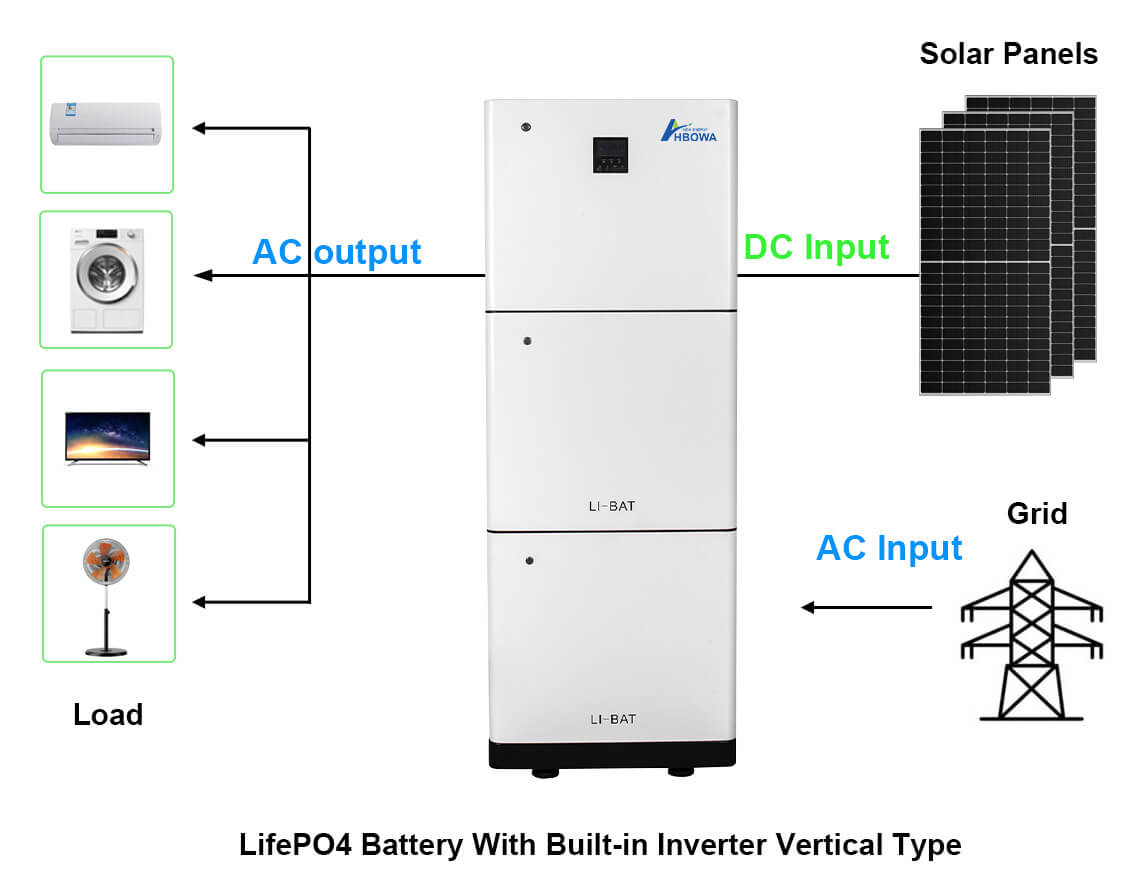

This 5kw 10kwh off grid solar system has a lifepo4 battery stackable type with a 5kw off-grid inverter on top layer. Each battery pack layer is 5KWh, and this system has two layers which means it is 10KWh. The LiFePO4 lithium battery boasts a high energy density and an extended lifespan of over 6000 cycles. It is designed for easy to install with virtually maintenance-free operation. We also supply various lifepo4 battery types to meet your market needs, such as rack mount lifepo4 battery, wall mount lifepo4 battery, floor standing lifepo4 battery, and all in one energy storage system, welcome to contact us for more details.
Technical Data
- DATA
| Model | 3KW-Off | 5KW-Off | 10KW-Off | 15KW-Off | 20KW-Off |
| Mono-facial solar panel 550W/41.95V |
6 pieces | 10 pieces | 18 pieces | 27 pieces | 36 pieces |
| Growatt Inverter | 3000es * 1 | 5000es * 1 | 5000es * 2 | 5000es * 3 | 5000es * 4 |
| DC Combiner Box | Customized According to Solar System Configuration | ||||
| Energy Storage Battery | Lithium Ion Battery |
5KW 10KWh All in one battery & inverter | Lithium Ion Battery |
||
| PV Cable 4 mm2 | 100 meter | 100 meter | 200 meter | 200 meter | 400 meter |
| Mounting Brackets | 1 set | ||||
| MC4 Connector | 8 pieces | 12 pieces | 20 pieces | 30 pieces | 40 pieces |
Components
Mono-crystalline solar panel
Mono-crystalline PERC solar panel
Maximum Power(Pmax): 550W
Maximum Power Voltage: 41.95V
Maximum Power Current: 13.11A
Open Circuit Voltage: 49.90V
Short Circuit Current: 14.09A
Maximum Efficiency: 21.29%
Dimension: 2278*1134*30mm
Weight: 26.4kg Total number: 10 pieces
Brand panel available: Longi/JA/Jinko/Trina
All In One Energy Storage System
Mounting Structure for Solar Panel
Our ground solar mounting system offers a robust and versatile solution for solar system installations. It is designed to withstand various environmental conditions, ensuring long-term stability and durability. The system’s lightweight design minimizes roof load, while its pre-assembled components significantly reduce installation time and labor costs.
Solar System Accessories
* 3 in and 1 out, combiner box with voltage resistance of 500V;
* PV single core cable 4m㎡,6m㎡,10m㎡ etc;
* MC4 connectors, according to solar panels.
If your customers need any other accessories, feel free to tell us.
