5KW Off Grid Solar System With Stacked Lithium Battery
Brand: HBOWA or OEM/ODM Service
Type: Off Grid
Max. Power: 5KW
Battery: 10KWh stacked lithium battery
(each layer 5KWh, top layer: 5KW inverter)
Output Voltage: 230VAC ± 5% @50/60Hz
Certificate: CE/TUV/CSA/CEC/UL/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
Description
As a professional solar power system supplier, HBOWA provides off-grid, on-grid, and hybrid solar systems with free design to support your solar business.
HBOWA 5kw solar system off grid consists of 550W solar panels, a stacked lithium battery with a 5kw inverter, and system accessories. We have certificates such as CE, TUV, CSA, CEC, UL, ISO, etc. to ensure high quality and performance. OEM and ODM services are supported.
We not only produce our brand solar panels, and lithium batteries, but also provide other brand solar products, such as Jinko, JA, Longi, Canidian Trina solar panels, and Growatt, Deye, GoodWe inverters.
For more detailed information, feel free to contact our team directly.
Technical Data
- DATA
Model | 3KW-Off | 5KW-Off | 10KW-Off | 15KW-Off | 20KW-Off |
Mono-facial solar panel 550W/41.6V |
6 pieces | 10 pieces | 18 pieces | 27 pieces | 36 pieces |
Growatt Inverter | 3000es * 1 | 5000es * 1 | 5000es * 2 | 5000es * 3 | 5000es * 4 |
DC Combiner Box | Customized According to Solar System Configuration | ||||
Energy Storage Battery | Lithium Ion Battery |
10KWh Lithium Ion Battery | Lithium Ion Battery |
||
PV Cable 4 mm2 | 100 meter | 100 meter | 200 meter | 200 meter | 400 meter |
Mounting Brackets | 1 set | ||||
MC4 Connector | 8 pieces | 12 pieces | 20 pieces | 30 pieces | 40 pieces |
Components
![550W solar panel](https://www.pretapower.com/wp-content/uploads/2024/05/550W-solar-panel.jpg)
N Type Mono-crystalline panel
Maximum Power(Pmax): 550W
Maximum Power Voltage: 41.58V
Maximum Power Current: 13.23A
Open Circuit Voltage: 50.27V
Short Circuit Current: 14.01A
Dimension: 2278*1134*30mm
Weight: 32kg(70.55lbs)
Total number: 10 pieces
Grade A Lithium Battery

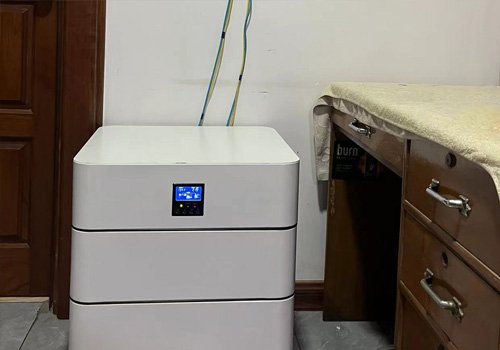

This 5kw 10kwh off grid solar system has a lithium battery stackable type with a 5kw off-grid inverter inside. Each battery pack layer is 5KWh, and this type has two layers which means it is 10KWh. The LiFePO4 lithium battery boasts a high energy density and an extended lifespan, exceeding 6000 cycles. It is lightweight, and easy to install with virtually maintenance-free operation. We provide various lithium battery types to meet your market needs, feel free to contact us for more details.
![lithium lifepo4 battery - HBOWA](https://www.pretapower.com/wp-content/uploads/2024/05/lithium-lifepo4-battery-HBOWA.jpg)
![Mounting structure for solar panel - HBOWA](https://www.pretapower.com/wp-content/uploads/2024/05/Mounting-structure-for-solar-panel-HBOWA.jpg)
Mounting Structure for Solar Panel
Our ground solar mounting system offers a robust and versatile solution for solar system installations. It is designed to withstand various environmental conditions, ensuring long-term stability and durability. The system’s lightweight design minimizes roof load, while its pre-assembled components significantly reduce installation time and labor costs.
Solar System Accessories
* 3 in and 1 out, combiner box with voltage resistance of 500V;
* PV single core cable 4m㎡,6m㎡,10m㎡ etc;
* MC4 connectors, according to solar panels.
If your customers need any other accessories, feel free to tell us.
![PV Accessories(combiner box MC4 connector PV Cable)](https://www.pretapower.com/wp-content/uploads/2024/05/PV-Accessoriescombiner-box-MC4-connector-PV-Cable.jpg)
