6KW 15KWh Off Grid System Split Phase With Floor Mounted Battery
System Type: 6KW 15KWh Off Grid split phase
Inverter Brand: Growatt
Battery: 15KWh lifepo4 battery floor-mounted type
Output Voltage: 104-110-115-120V(50Hz/60Hz +/-0.3 Hz)
Certificate: CE/TUV/CSA/CEC/UL/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Description

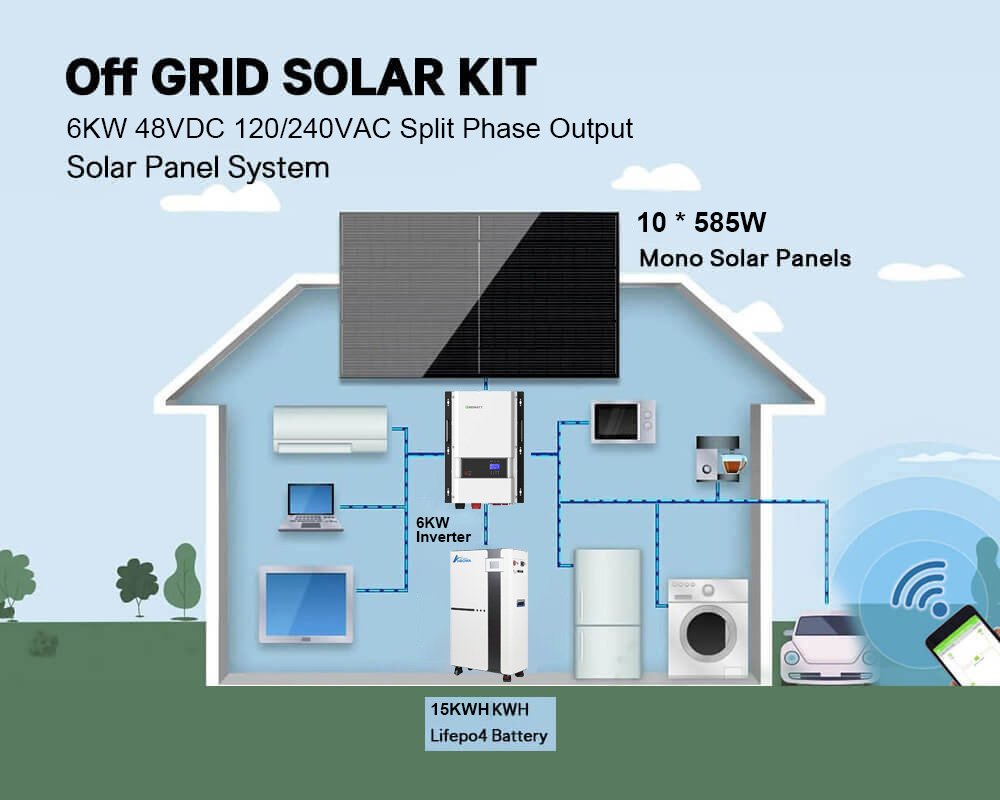

6KW Off Grid Solar System With 15KWH Floor Type Lifepo4 Battery Split Phase:
The 6kw off grid solar system generates about 23.4kwh electricity considering there are 4 hours of effective sunshine per day. This is the split phase off grid solar system which is suitable for application areas in America, Canada, Japan, Panama, Cuba, Mexico, Ecuador, El Salvador, etc. The solar system includes a 15kwh floor-mounted lifepo4 battery which can store the electricity for later use at night or rainy days, the floor mounted battery is designed for plug and play and the ingress protection is IP20, which has a warranty of 5 years, 10 years optional.
What is the storage battery in this solar system?
15KWH floor mounted lifepo4 battery. It is easy to move, plug, and play, with over 6000 cycle times, a 5-year warranty, high energy density, and high safety ensured.
Can I sell electricity to the utility grid with this system?
No, it doesn’t support. This is the 6kw off grid solar system which can use electricity independently, but can not sell power to the grid. As it is split phase low voltage solar system, it is suitable for areas such as America, Japan, Canada, etc.
What HBOWA Offer:
HBOWA is the solar products manufacturer of solar panels and lifepo4 lithium batteries, we also porvide Tie1 solar panels sources, Jinko, JA, Longi, Canidian, and Trina solar panels, solar inverters such as Growatt, Deye, Solis, MUST, etc. OEM and ODM services are available, feel free to reach out.
Technical Data
- DATA
| 6Kw Off Grid Split Phase 48V Solar System | ||||
| Item | Name | Description | Quantity | Warranty |
| 1 | Solar Panel | PERC 585w Mono | 10pcs | 12 years |
| 2 | Off grid Inverter | 6kw | 1 set | 2 years |
| 3 | PV Combiner Box | DC PV Combiner | 1 pc | 5 years |
| 4 | Battery | 15KWh floor mounted lifepo4 battery |
1 pcs | 5-10 years |
| 5 | Solar Mounting Structure | Roof/Ground Install (Customized) |
1 set | 10 years |
| 6 | PV Cable | 4 mm2 DC PV Cable | 100m | 10 years |
| 7 | MC4 | MC4 Connector | 12pcs | – |
| 8 | Standard Wooded Package + System Connecting Drawings (Easy Installing) | |||
| 9 | System Capacity could be adjustable according to customer’s situation | |||
Components
Mono-crystalline panel
Maximum Power(Pmax): 585W
Maximum Power Voltage: 42.52V
Maximum Power Current: 13.76A
Open Circuit Voltage: 51.16V
Short Circuit Current: 14.55A
Maximum Efficiency: 22.65%
Dimension: 2278*1134*30mm
Weight: 31.8kg Total number: 10 pieces
6KW Growatt Inverter
- Low frequency-inverter 120/240Vac Split Phase output.
- Integrated MPPT charge controller
- Optional WIFI/ GPRS remote monitoring.
- Built-in pure copper low-frequency transformer
- Configurable grid or solar input priority
15KWH LifePO4 Battery
51.2V 280Ah lifepo4 lithium battery floor mounted type.
- Grade A prismatic battery cells;
- Over 6000 cycle times life;
- Built-in BMS protection board ensures high safety and stability;
- The warranty of the battery is 5 years, 10 years are optional.
- Can be compatible for most of the inverters in the solar market.
Mounting Structure for Solar Panel
Our ground solar mounting system offers a robust and versatile solution for solar system installations. It is designed to withstand various environmental conditions, ensuring long-term stability and durability. The system’s lightweight design minimizes roof load, while its pre-assembled components significantly reduce installation time and labor costs.
Solar System Accessories
* 2 in and 1 out, combiner box with voltage resistance of 500V;
* PV single core cable 4m㎡,6m㎡,10m㎡ etc;
* MC4 connectors, according to solar panels.
If your customers need any other accessories, feel free to tell us.
