6KW 20KWh Off Grid Solar System Split Phase
System Type: 6KW 20KWh Off Grid split phase
Inverter Brand: Growatt
Battery: 20KWh rack lifepo4 battery
Output Voltage: 104-110-115-120V(50Hz/60Hz +/-0.3 Hz)
Certificate: CE/TUV/CSA/CEC/UL/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Description

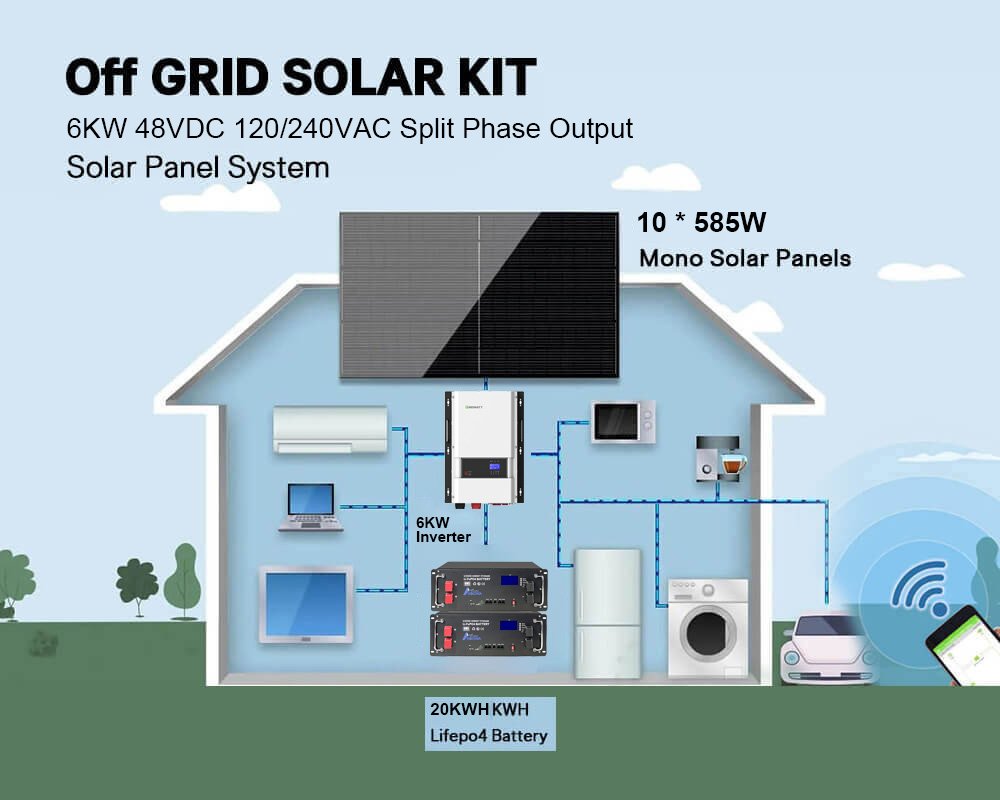

6KW Split Phase Off Grid Solar System With 20KWH Rack Type Lifepo4 Battery:

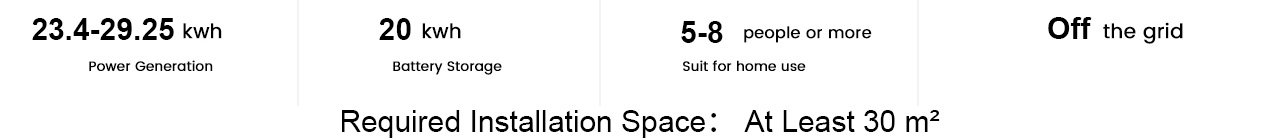

The 6kw off grid solar system generates about 23.4kwh electricity considering there are 4 hours of effective sunshine per day. This is the split phase off grid solar system which is suitable for application areas in America, Canada, Japan, Panama, Cuba, Mexico, Ecuador, El Salvador, etc. The solar system includes a 20kwh rack lifepo4 battery which can store the electricity for later use at night or rainy days.
Why do I need 20KWH lifepo4 batteries for this 6kw off grid solar system?
It depends on your power needs at night or on rainy days. If you do not need much power at night, then you can choose the 6kw 10kwh off grid solar system. If you need more electricity at night, then you can choose this system set, the large capacity of the lifepo4 battery ensures you uninterrupted power use for the whole night.
What solar mounting structures are included in this system?
For this off-grid solar system, the roof-type solar mounting structures which are aluminum materials are included. The ground mounting systems for the solar panel kits are also available. please feel free to reach out in advance, we are always here to support you.
How to install the 6kw off grid solar system?
The 6kw split phase off grid solar system includes solar panels, solar inverter, solar batteries, and accessories. It’s easy to install them by yourself. We have operation guide videos on our YouTube channel to help you with the process of the installation. By the way, you can also find the solar installers in your local area to help you check your place conditions and install for you. Please make sure to find more than three installers to compare their services before you make an informed decision.
Components
Mono-crystalline panel
Maximum Power(Pmax): 585W
Maximum Power Voltage: 42.52V
Maximum Power Current: 13.76A
Open Circuit Voltage: 51.16V
Short Circuit Current: 14.55A
Maximum Efficiency: 22.65%
Dimension: 2278*1134*30mm
Weight: 31.8kg Total number: 10 pieces
6KW Growatt Inverter
- Low frequency-inverter 120/240Vac Split Phase output.
- Integrated MPPT charge controller
- Optional WIFI/ GPRS remote monitoring.
- Built-in pure copper low-frequency transformer
- Configurable grid or solar input priority
Grade A LifePO4 Battery
In this off-grid solar power system, we use 51.2V 200Ah lifepo4 lithium battery server rack type. We choose grade A prismatic battery cells, it has over 6000 cycle times, and the built-in BMS protection board ensures the high safety and stability of the lifepo4 battery. The warranty of the battery is 5 years, 10 years are optional.
Mounting Structure for Solar Panel
Our ground solar mounting system offers a robust and versatile solution for solar system installations. It is designed to withstand various environmental conditions, ensuring long-term stability and durability. The system’s lightweight design minimizes roof load, while its pre-assembled components significantly reduce installation time and labor costs.
Solar System Accessories
* 3 in and 1 out, combiner box with voltage resistance of 500V;
* PV single core cable 4m㎡,6m㎡,10m㎡ etc;
* MC4 connectors, according to solar panels.
If your customers need any other accessories, feel free to tell us.
What can HBOWA support you?
As the configuration of the off grid solar system will be different according to your detailed requirements, so feel free to send an inquiry to us for your customized solar system project!
