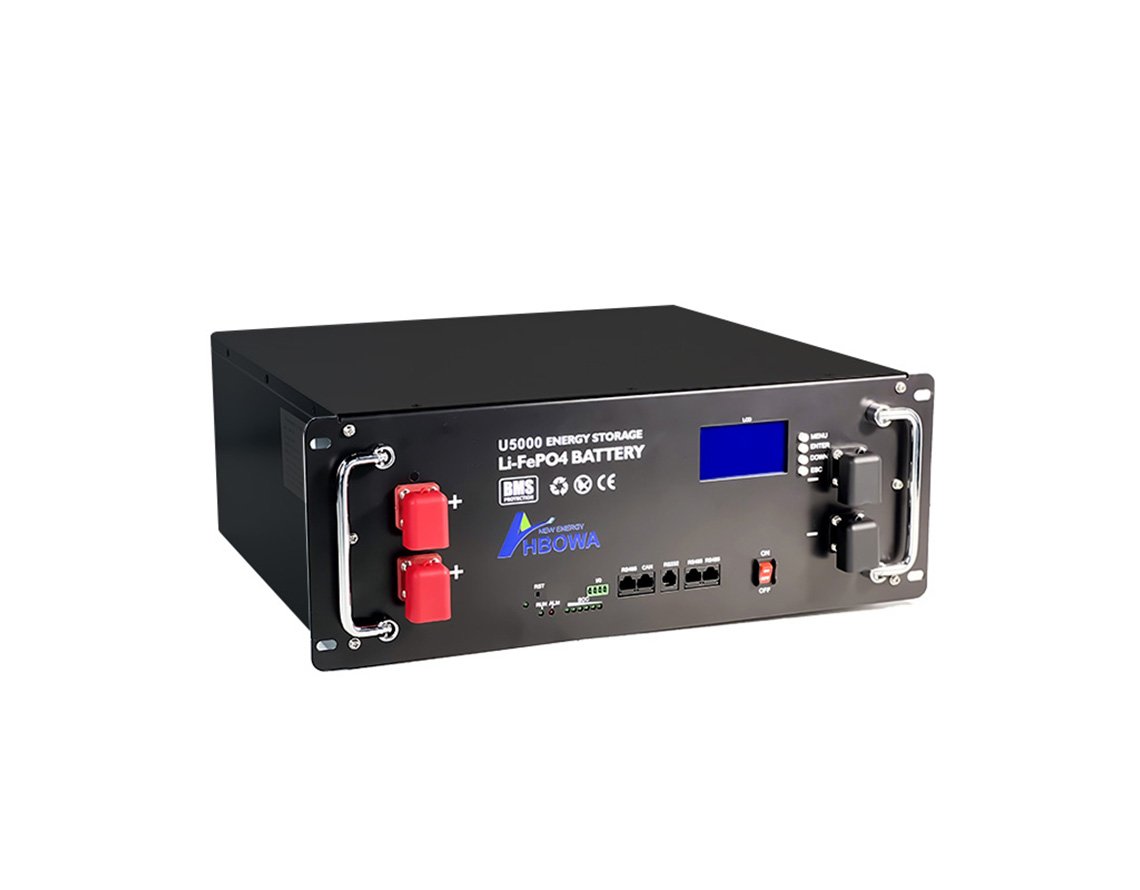

Server Rack Lithium Battery 51.2V 280Ah
Battery Cell: LiFePO4 Prismatic cell 3.2V 280Ah
Nominal Voltage & Capacity: 51.2V 280Ah
Cycle Life: Over 6000 times
Working Temperature:0℃ – 55℃(32℉ – 131℉)
Support: Wholesale, OEM, ODM
Warranty: 5 years, 10 years(Customization)
Max Parallel: Max 15 in Parallel to 4200Ah 215.04KWh
Certifications: CE, FCC, CCC, UN38.3, UN3480, Class 9
Customization: Including voltage, capacity, current, size, appearance, Link Bluetooth, Wifi, etc.
User ManualDescription
HBOWA uses A-grade lithium iron phosphate battery cells and strictly controls the battery quality, provides you with efficient, durable, and safe rack-mounted lithium batteries. These server rack batteries feature over 6000 times cycle life, and the integrated smart BMS management system provides a comprehensive protection mechanism and improves the lifespan of the batteries. Designed for space-saving installation in server racks, the batteries are easy to install and connect in parallel to the capacity that you need, offering versatility, excellent ventilation, and high safety performance.
Technical Data
- ELECTRICAL DATA
- MECHANICAL DATA
- TEMPERATURE DATA
| Model | XPA-51280 |
|---|---|
| Capacity | 280Ah |
| Voltage | 51.2V |
| Charging Voltage | 57.6V |
| MAX Charge/Discharge Current | 200A |
| Nominal Energy | 14.336KWh |
| Available Energy | 12.9KWh |
| Cycle Life | 6000 times |
| Parallel: | Max 15 in Parallel to 4200Ah 215.04KWh |
| Product Size | 750*484*240mm |
|---|---|
| Net Weight | 106kg |
| Cooling Way | air cooling |
| Waterproof level | IP20 |
| Life Span | 10 years |
| Communication Port | RS485, RS232, CAN, WIFI, Bluetooth |
| Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9 |
| Detection temperature | 65±2℃(149±2℉) |
|---|---|
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
| Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
Advantages
51.2V Lithium ion Rack Battery
- LCD Display battery data
- lifepo4 battery, lead acid replacement
- compact light design, easy to install
- Maintenance-free, water-proof
- Max 15 units lifepo4 battery in parallel
- Can, RS485, RS232 Port Communication
- Compatible with various brand inverters
Smart BMS Protection
- Over charge protection function
- Over discharge protection function
- Over current protection function
- Short protection function
- Over temperature protection function
- Automatic cell balance function
- Cell balance function
Packaging List
1. A pair of red and black 0.22 meters parallel positive and negative electrode line 6
2. 2 meters of inverter communication network cable
3. 0.3 meters network line
4. 1.5 meters grounding yellow and green line 12
5. RS232 BMS communication network cable (optional)
6. User instruction
server rack mount lithium battery * 1
Features
Wide Application Scenarios (6)
