50KW Hybrid Solar Power System
System: 50KW 80KWh Three phase
Inverter Type: hybrid inverter with MPPT controller
Battery: High voltage stacking lifepo4
Standard Voltage: 409.6V
Suitable for commercial and industries
Type: 50KW Hybrid Solar System
Description
Composition:
The 50kw solar power system consists of solar panels, a 50kw solar hybrid inverter, 81.92kwh solar batteries lithium-ion type, mounting structures, and solar accessories, it is suitable for single phase electricity power needs in residential and commercial areas with high-power consumption needs.
Reliable Solar Power System:
We have strict quality control, each solar system will undergo 48 hours of aging test to meet your diverse requirements, and comprehensive after-sales services for the solar panel set. The 50kw solar system has 81.92kwh storage batteries and can also be customized according to your specific needs, providing you with uninterrupted and stable electricity during emergency conditions.
Application Scenarios:
The 50kw solar power system is suitable for many applications, such as,
- Industries. 50kw solar system can meet the electricity needs of many industries like aluminum power plants, paper mills, etc.
- Large shopping malls, supermarkets. These places have a high demand for electricity, and need electricity mainly during the day, the 50kw solar system can provide power support for equipment such as lighting, air conditioners, elevators, and so on, to reduce the dependence on the traditional utility grid and saving electricity bills.
- Larger Farms. Large farms need to consume a large amount of electricity for irrigation, ventilation, lighting, feed processing, etc. The 50kW solar power system can provide a stable power supply for farms and reduce dependence on the mains power. For example, a 1000-acre farm in Iowa, the United States, has installed a 50kW solar system to supply power to a 2400-head pig farm.
- Schools. The buildings of schools have large roof areas. The installation of a 50kW solar energy system can provide partial power for schools, which can be used for lighting, teaching equipment, air conditioners, etc., reducing the school’s electricity expenses. Moreover, it can also popularize environmental protection concepts for students at schools.
- Hospitals. The 50kW solar power system can serve as a backup power source for hospitals. In the event of a power outage or insufficient power supply, it can ensure the uninterrupted basic operation of hospital equipment.
Technical Data
- DATA
| 50kw Solar System Components | ||||
| Item | Name | Description | Quantity | Warranty |
| 1 | Solar Panel | PERC 550w Mono | 90 pcs | 25 years |
| 2 | Solar Hybrid Inverter | 50kw | 1 set | 5 years |
| 3 | PV Combiner Box | customized | 1 pc | 5 years |
| 4 | Battery | 81.92KWh high voltage rack mounted battery |
1pcs | 5-10 years |
| 5 | Solar Mounting Structure | Roof/Ground Install (Customized) |
1 set | 10 years |
| 6 | PV Cable | 4 mm2 DC PV Cable | 200m | 10 years |
| 7 | MC4 | MC4 Connector | 20pcs | – |
| 8 | Standard Wooded Package + System Connecting Drawings (Easy Installing) | |||
| 9 | System Capacity could be adjustable according to the customer’s situation | |||
50KW Solar Power System
550W Solar Panel
Mono-crystalline Half Cell Panel
Maximum Power(Pmax): 550W
Maximum Power Voltage: 41.95V
Maximum Efficiency: 21.29%
Dimension: 2278*1134*30mm
Weight: 26.4kg Total number: 36 pieces
Warranty: 10 Years
Brand panel available: Longi/JA/Jinko/Trina

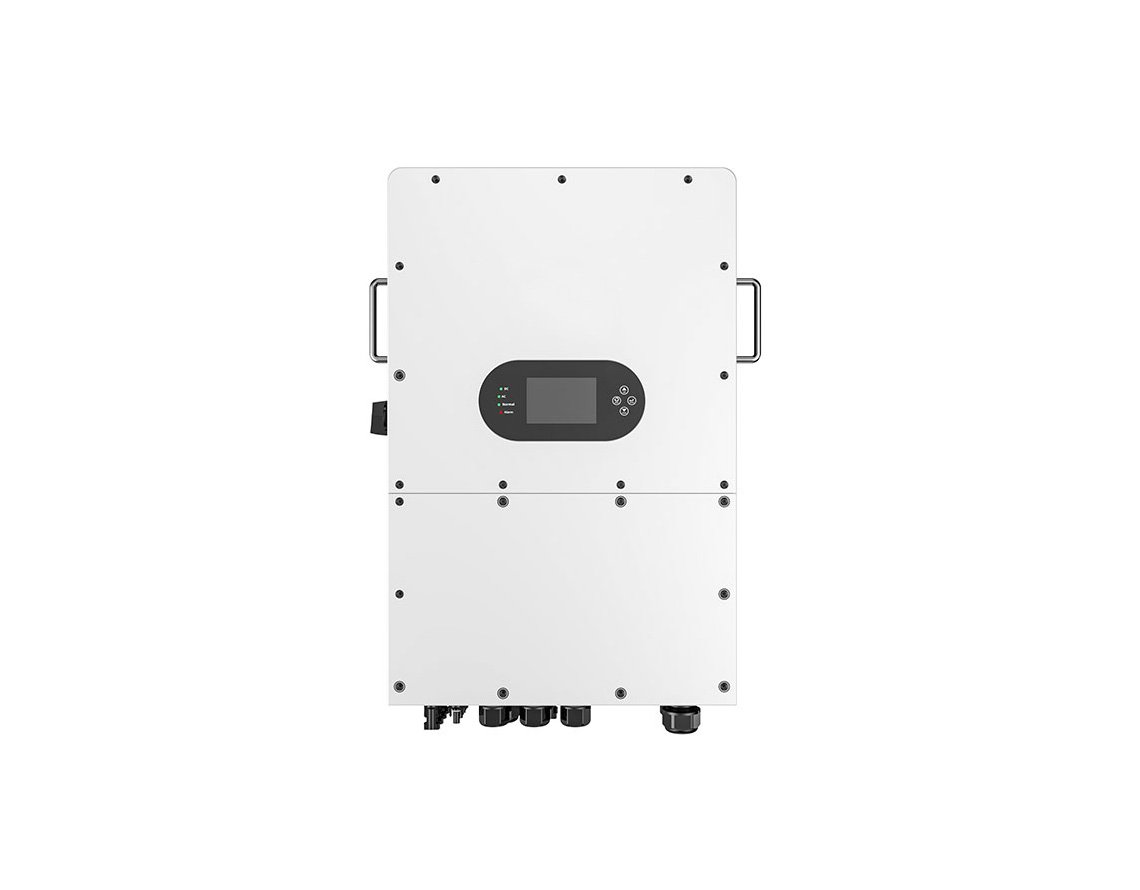

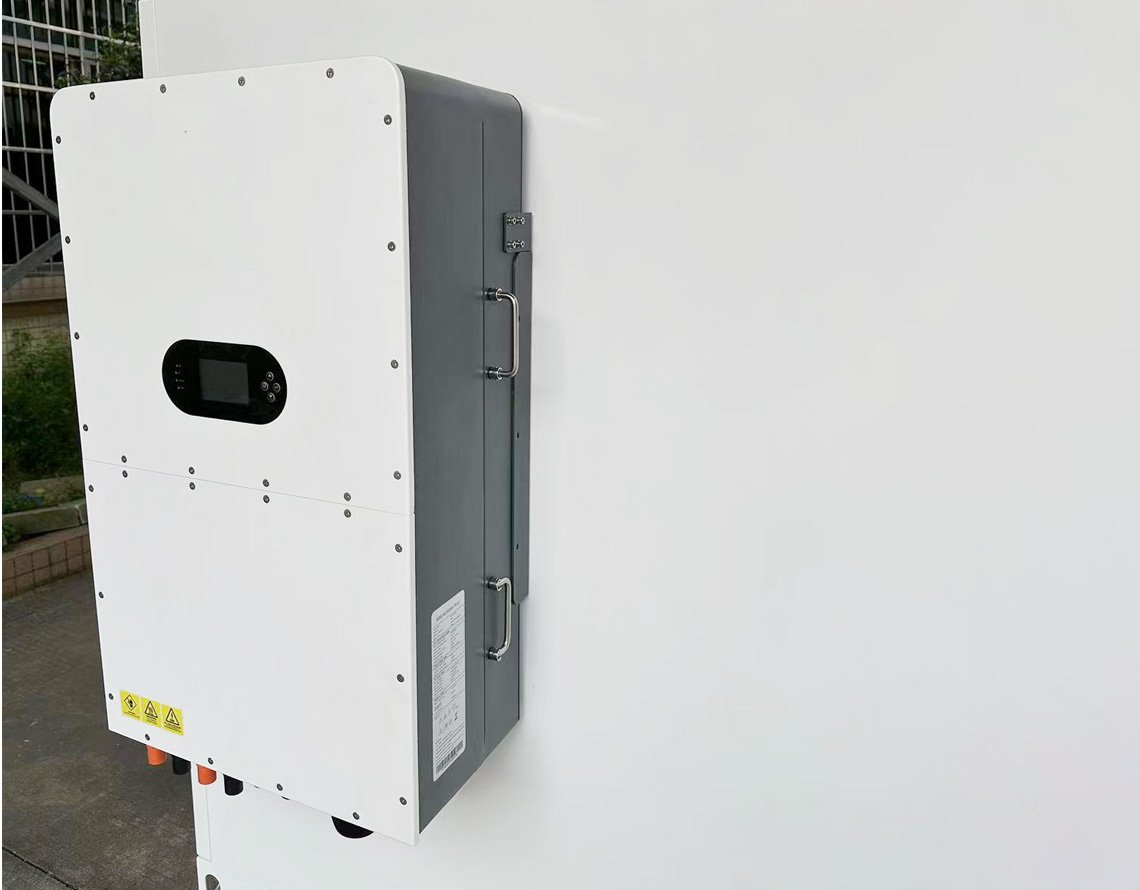

50KW Solar Power System Inverter
Integrated MPPT charger controller
Inverter Power: 50kW
Output Voltage: 3L/N/PE 220/380Vac 230/400Vac
Max Efficiency: 97.6%
Rated AC Output Power: 50kw
Communication:RS485/CAN
Protection Degree:lP65
Warranty:5 years

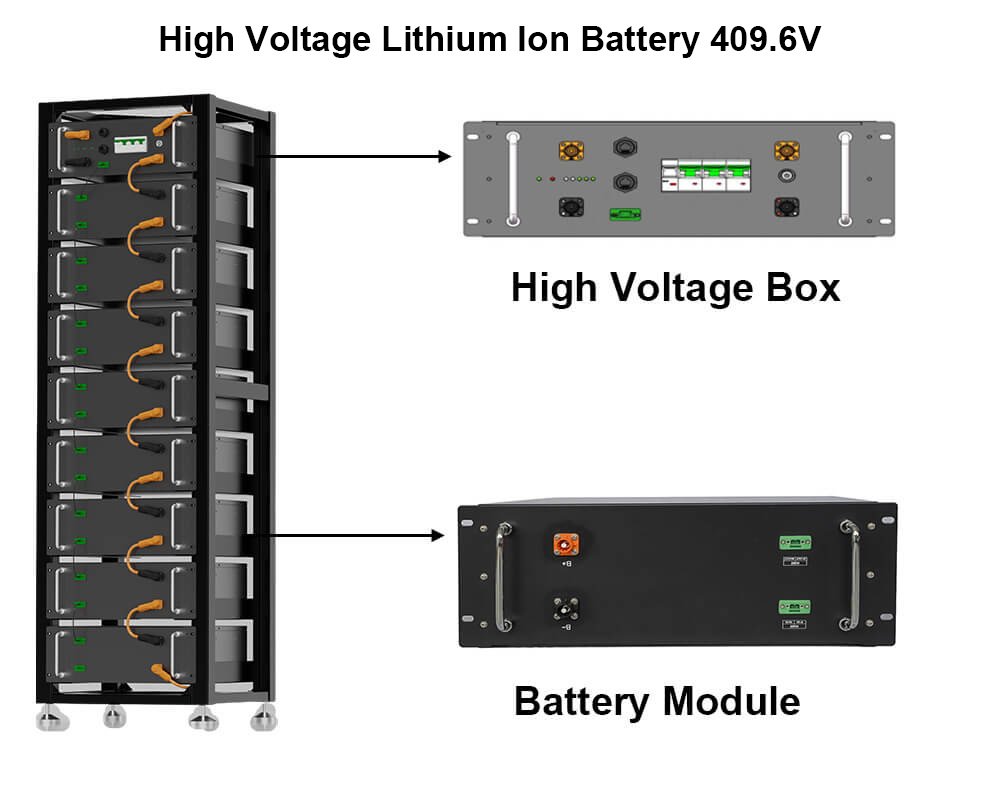

Server Rack LifePO4 Battery
Battery Type: Lithium ion lifepo4 81.92kwh
Cycle Time: More than 6000 times
High energy density High Voltage
Installation type: Cabinet
Communication:RS485/CAN
Warranty: 5-10 years
Certificates: UL, CE, MSDS, UN38.3
Mounting Structure for Solar Panel
Our solar mounting structure of the 50KW solar power system offers a robust and versatile solution.
- Ground solar mounting structure
- Residential roof mounting structure
- Vertical wall solar mounting system
- All aluminum solar mounting system
Solar System Accessories
* Combiner box with voltage resistance of 500V;
* PV single core cable 4m㎡,6m㎡,10m㎡ etc;
* MC4 connectors, rated voltage:1500VDC.
* DC switches, AC breaker
50KW Solar Power System Tecnical Data
- Solar Panel
- Solar Inverter
- Lifepo4 Battery
| Maximum Power (Pmax) | 550Wp |
| Maximum Power Voltage (Vmp) | 41.95 |
| Maximum Power Current (Imp) | 13.11 |
| Open-circuit Voltage (Voc) | 49.9 |
| Short-circuit Current (Isc) | 14.09 |
| Module Efficiency STC (%) | 21.29% |
| Power Tolerance | 0-3% |
| Model | HB50K-TPS-EU-A |
| Max. DC Input Power (W) | 65000 |
| Rated PV Input Voltage (V) | 450-850 |
| Start-up Voltage (V) | 180v |
| MPPT Voltage Range (V) | 150-850 |
| Full Load MPPT Voltage Range (V) | 450-850 |
| PV Input Current (A) | 36+36+36+36 |
| Max. PV I (A) | 55+55+55+55 |
| No.of MPP Trackers | 4 |
| No.of Strings per MPP Tracker | 2+2+2+2 |
| AC Output Data | |
| Rated AC Output Active Power (W) | 50000 |
| Max AC Output Active Power (W) | 55000 |
| AC Output Rated Current (A) | 76.0 |
| Max AC Output Current (A) | 83.6 |
| Max. Continuous AC Passthrough (A) | 200 |
| Peak Power (off grid) | 1.5 time of rated power, 10 S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Power Factor | 1 |
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380Vac 230/400Vac |
| Grid Type | Three Phase |
| Total Harmonic Distortion (THD) | <3% (of nominal power) |
| DC Current Injection | <0.5% (Rated Current) |
| Model | XPG-512200 |
| Capacity | 200Ah |
| Voltage | 51.2V |
| MAX Charge/Discharge Current | 100A/0.5C |
| Rated Energy | 81.92KWh |
| Max Stacking Quantity | 8 PCS |
| Cycle Life | 6000 times |
| Installation | Cabinet |
| Cooling Way | air cooling |
| Waterproof level | IP20 |
| Life Span | 10 years |
| Communication Port | RS485, RS232, CAN, WIFI, Blue Tooth |
| Certificates | CE, FCC, CCC, UN38.3, UN3480, Class9 |
| Detection temperature | 65±2℃(149±2℉) |
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) |
| Operating Discharge Temperature | -20℃ – 55℃(-4℉ – 131℉) |
| Product Size | 826*636*1723mm |
| Package Size | 866*676*1763mm |
| Net Weight | 95kg |
| Gross Weight | 120kg |
What Can HBOWA do?
High Quality solar power systems;
Free solar system solutions design;
Competitive price
With no MOQ, delivery from China
Related Product (11)
It depends on the power of solar panels used in the 50kw solar system. For this 50kw solar panel system, 550w solar panels. 50kw/550w = 90 pieces, so we use 90 pieces panels in this system. If you choose other power solar panels, the number of modules will vary.
The electricity produced by the 50kw system depends on the quantity of the solar panels, the weather, your installation place, and so on. If the solar panels get 4 hours of effective sunlight from the sun per day, the electricity you get from this 50kw solar system will be 90(quantity)*550(power)*4(hours)/1000(K) =198 KWH per day. This is the estimated value of the generated electricity, the actual electricity will vary by many factors as mentioned above.
We use 90 pieces of solar panels for the 50kw solar system, the size of each solar panel is about 2.76 square meters, so the total space for the solar panels’ installation is about 2.76*90 = 248.4 square meters. This is only the estimated value, the actual space needed depends on the area of solar panels and the mounting structure during the installation.
